    50HZ / 60HZ Automatic Assembly System For Three Phase Asynchronous Motor

    Ask Lasest Price
    Brand Name : CST
    Model Number : CST-MA11
    Price : Negotiation
    Payment Terms : T/T, L/C
    Supply Ability : 5 pcs per month
    Delivery Time : 25 working days
    • Product Details
    • Company Profile

    50HZ / 60HZ Automatic Assembly System For Three Phase Asynchronous Motor

    Three Phase Asynchronous Motor Assembly Line With Chain Conveyor system


    1. Instruction:

    Our three Phase Asynchronous Motor Assembly Line is an high efficient self-flow production line.

    The assembly line body is the main component of the assembly line.

    The line body is mainly composed of steel plate brackets,

    which are connected by the upper and lower beams.

    The four square guide rails are mounted on the beam,

    and each station above the upper and lower rails has a positioning trolley.


    2. Special:

    1, multi-functional for three Phase Asynchronous Motor Assembly Line

    2, the transmission capacity can carry large products

    3, Made of special aluminum profiles, easy to install and repair.

    4. The conveying speed is accurate and stable, which can ensure accurate synchronous conveying.

    5. It can realize accumulation and transportation, which can be used as assembly production line or as storage and transportation of materials.


    3. Parameter:

    Line width:150-900mm, can be selected by the customer.
    Line height:General 750mm, range 500-1000mm
    Line length:

    single-stage drive up to 30-40m,

    selected by the customer.

    Feeding speed1-5m/min for three Phase Asynchronous Motor Assembly Line
    Chain form:

    Chain and roller transport constant speed - double pitch roller chain, chain and roller transmit differential-differential chain

    (2.5x speed and 3x speed and 4x speed)

    Tooling board typesteel plate, engineering plastic board, wood board, etc.
    Frame materialcarbon steel.Q235
    Voltage380V/415V

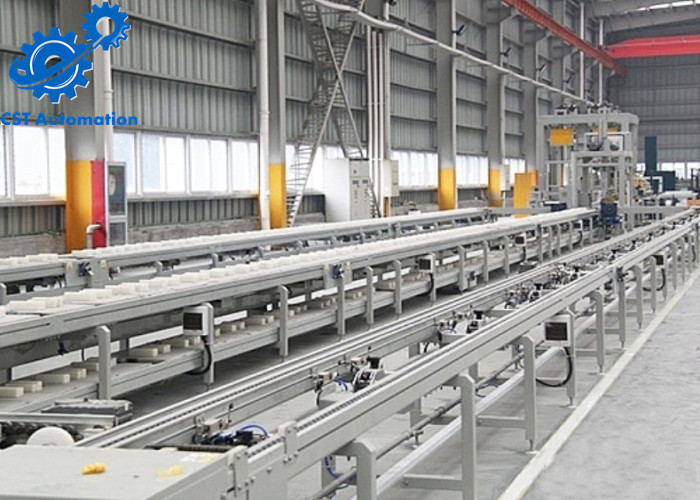

    4. Pictures

    50HZ / 60HZ Automatic Assembly System For Three Phase Asynchronous Motor



    5. Please provide the below information :


    The most important is the processing craft !

    1. Frame material:

    Option:Stainless teel304

    Aluminium profile

    Carbon steel

    According customers’demands
    2. product type:what kind product need assemblyProvide customized service
    3. dimension(L*W*H) :Provide customized serviceCustomers’decides
    4. speed:Fixed or AdjustableCustomers’decides
    5. Voltage:According Country for three Phase Asynchronous Motor Assembly LineCustomers’provide
    6. capacity5 piece/daycustomers'provide

    6. Advantages & Factory

    1. Provide the customized service
    2. Provide the favourate price.
    3. Provide the production draft before producing.
    4. Experienced 8engineers with more than 15years working time.
    5. With the latest drawing tools –Soildworks CAD
    6. Provide the installation instruction with video,pictures etc.
    7. Provide the after sales serivce
    8. With 1year warranty after exporting.
    9. three Phase Asynchronous Motor Assembly Line
